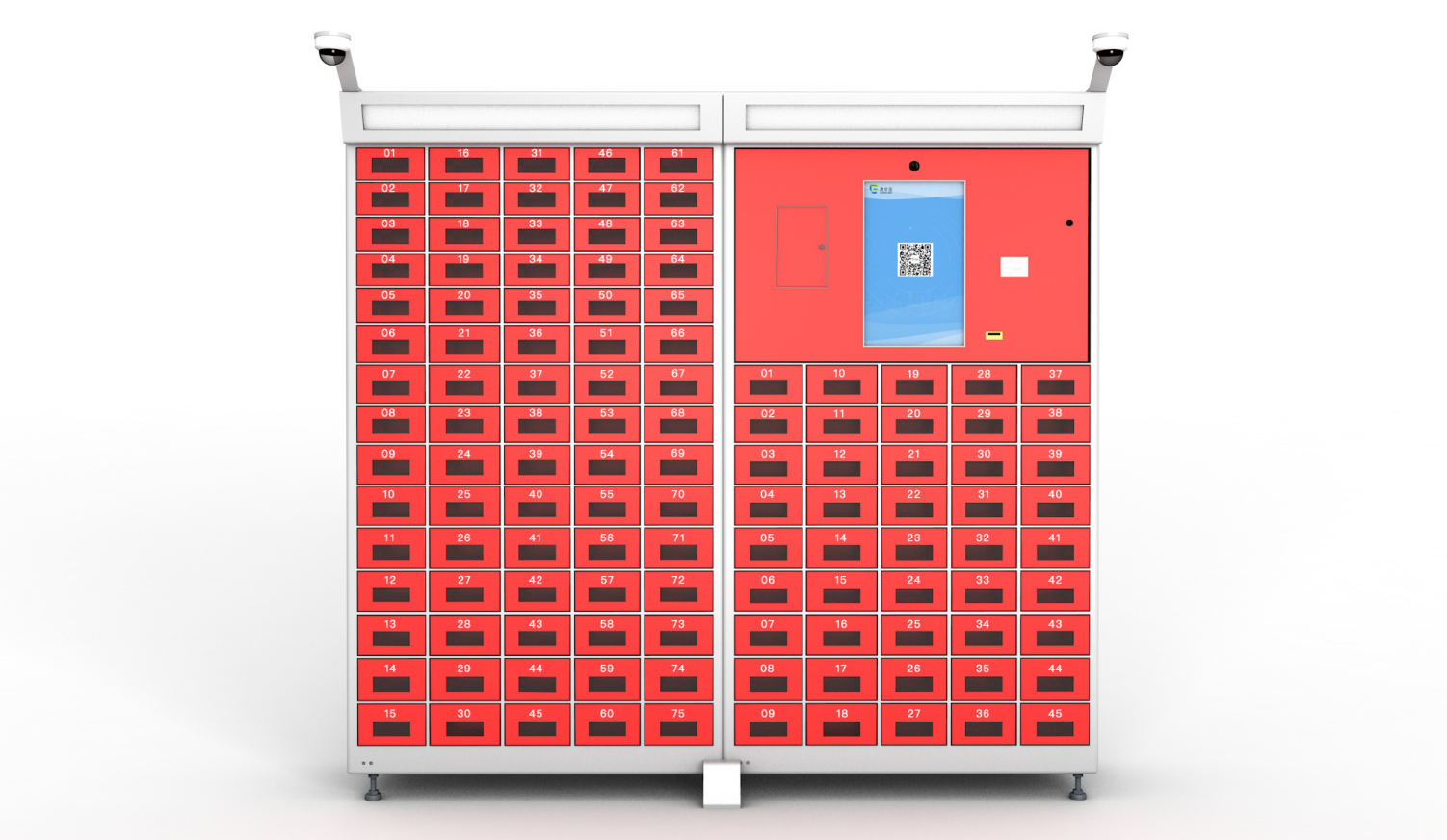

Fingerprint Locker
The electronic locker is also known as a self-storage cabinet, it is a great application in the traditional storage industry.
The locker including input device as Barcode, PIN, IC/ID/HID card, fingerprint and face recognition, output device as screen and barcode printers, embedded microprocessors, electronic locks and power supply and other components.
Specification
| Industrial computer indicators | Common Version Specification： ①CPU: single-core or dual-core, main frequency ≥1GHz ②Memory: ≥512M ③Hard disk：≥8G | High-end Version Specification： ①CPU: dual-core or better, main frequency ≥1.5 GHz ②Memory：≥1G ③Hard disk：≥8G |
| Clients could choose according to actual situation. | ||
| Operating System | android | |
| Internet | RJ45、4G | |
| Display | 10.1”、21.5” | |
| Touch Screen | Infrared touch， IP65 protection level | |
| Barcode scanner | Able to smoothly read barcodes/QR codes printed on paper labels and displayed on mobile phone/computer screens, with >95% success rate | |
| Camera | >200W pixels, support infrared night photography | |
| Video Surveillance | 2 full-range surveillance cameras, with night infrared surveillance capabilities, motion detection, and access to video surveillance data within 30 days | |
| Leakage protection switch | with surge protector | |
| Switching power supply | Input voltage: AC180V~264V | |
| Electric Power Meter | Working Voltage：AC220V/50Hz；electric current：10-20A | |
| Electronic locks | The opening and closing response time of the grid door lock is not more than 300 milliseconds, and the system can sense the opening or closing status of the grid door | |
| Fan | Air circulation cooling, temperature control | |
| Material | Cold rolled steel plate, stainless steel plate etc. | |
| Size (mm) | W2700*D490*H2059 | |
| Color & Pattern | Stylish & professional design, color and pattern can be customized | |
| Thickness of cabinet frame | 20~30 (mm) | |
| Gap Tolerance | 1.5~2.0 (mm) | |
| Grid Size(mm) | S Width:300～450 Depth:400～600 Height:80～110 M Width:300～450 Depth:400～600 Height:110～250 L Width:300～450 Depth:400～600 Height:＞250 Customize :Issue drawings according to the requirement. | |
Operation Workflow
Access Method:
Barcode locker
Card locker
Elngerprint locker
Face recognition locker
QR code locker
Self-setting password locker

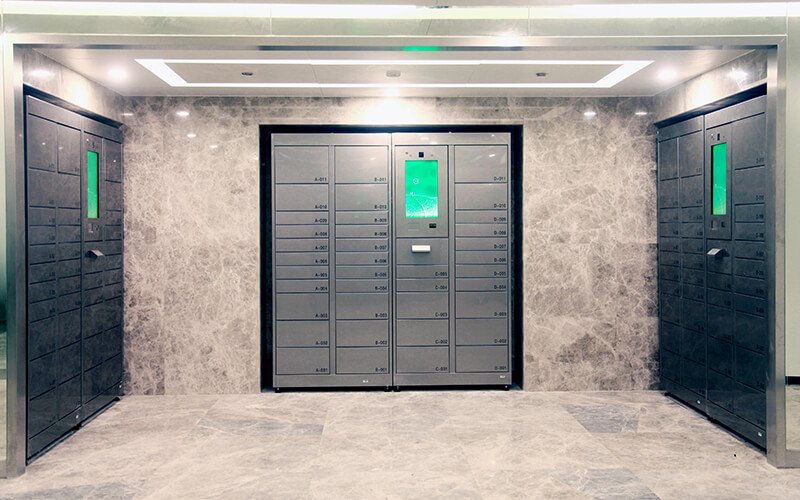

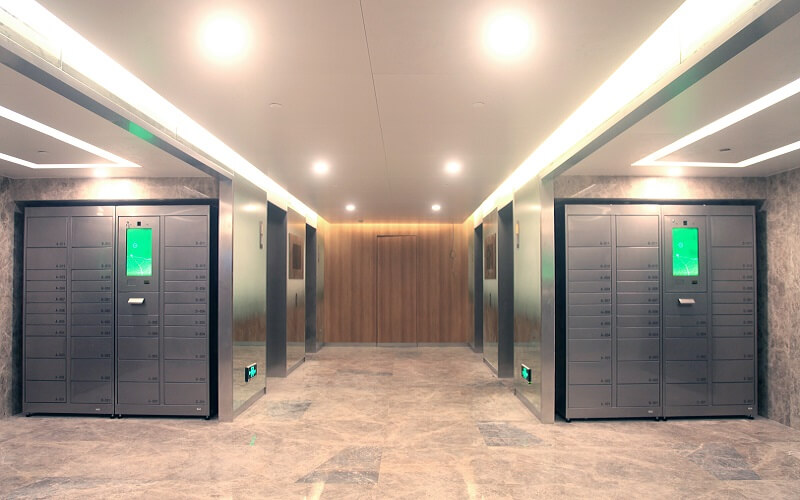

Application Show
Fingerprint Locker
Fingerprint Locker
Packing & Delivery
We will pack the goods with the utmost care. The package will consist of Cartons, Pallets or Plywood Cases, with protective foam inside. The goods are shipped by sea, air, or train according to clients’ instruction.
